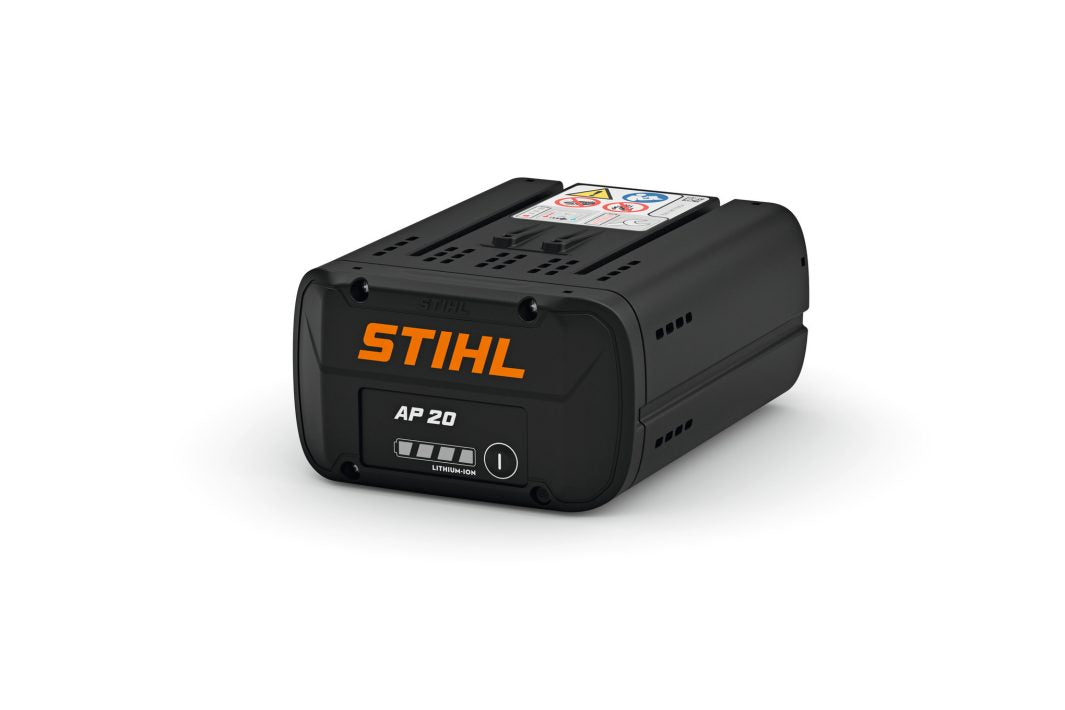

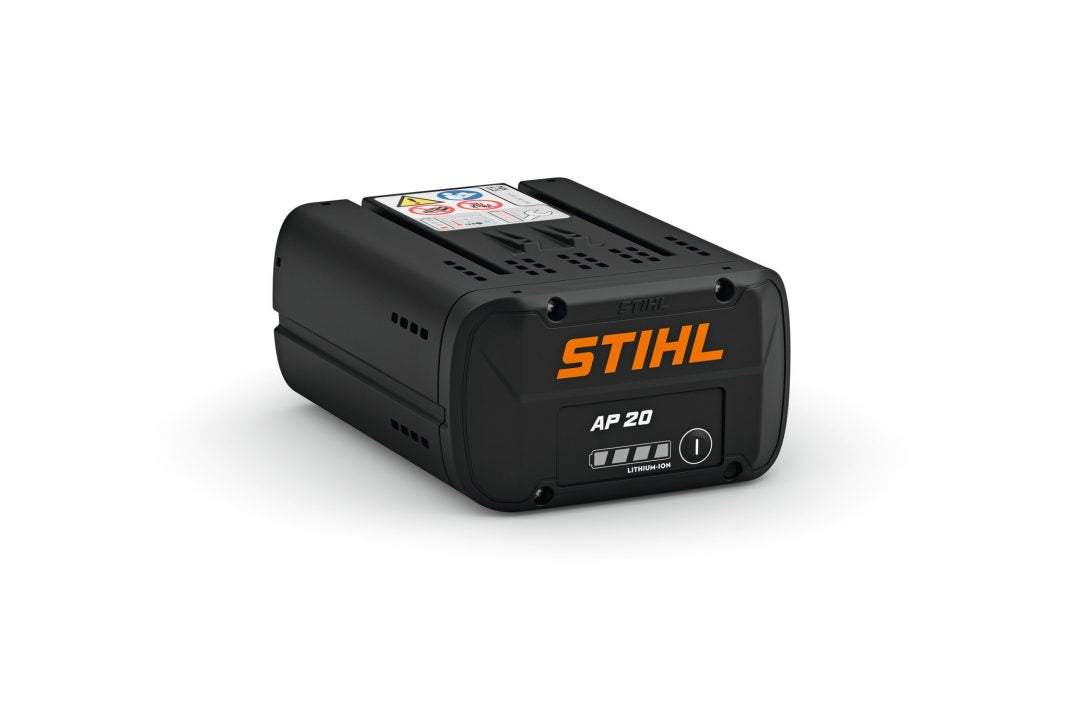

Battery AP 20

The STIHL AP System supports you in your daily tasks in garden, landscape, and tree care. The suitable lithium-ion AP batteries help you to use STIHL cordless tools even for demanding jobs. With 4 LED lights, you are always informed about the battery's charge status.

The STIHL AP 20 battery with a nominal voltage of 36 V is versatile, durable, and long-lasting. This allows you to efficiently complete demanding tasks. However, its power is primarily designed for entry-level models of the AP system. For STIHL AP tools with higher power requirements, you should use more powerful batteries from the AP system.

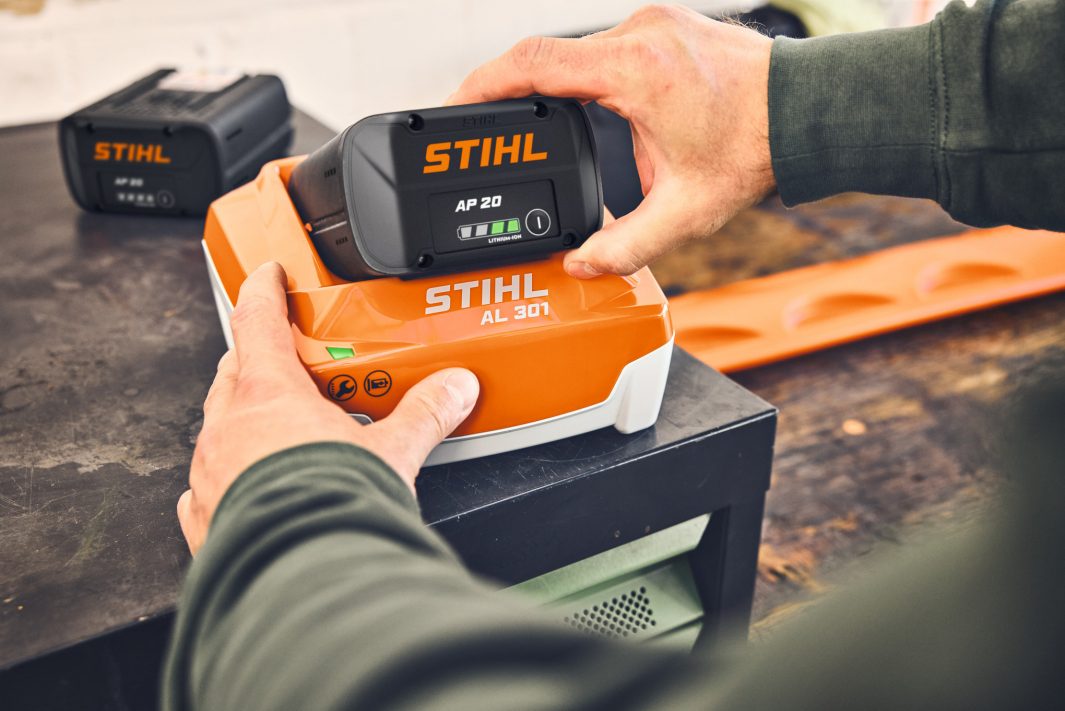

You can recharge the STIHL AP batteries with a nominal voltage of 36 V using the STIHL AL 101 battery charger or another compatible STIHL battery charger.

STIHL AP batteries have the following energy content:

• AP 20 with 144 Wh battery energy, 1.3 kg weight
• AP 30 with 270 Wh battery energy, 1.8 kg weight
• AP 200 with 187 Wh battery energy, 1.3 kg weight
• AP 200 S with 187 Wh battery energy, 1.3 kg weight
• AP 300 S with 281 Wh battery energy, 1.8 kg weight
• AP 500 S with 337 Wh battery energy, 2.0 kg weight

Regular maintenance, proper charging of the lithium-ion battery, and a suitable environment for storing the battery will help ensure a long service life.

In our overview of STIHL battery run and charge times, you can see how long you can work with your STIHL cordless tool and how long each AK battery takes to charge. The overview also shows which AK battery is recommended for your STIHL tool.

The following tools are compatible with full power:
ASA 65, ASA 85
BGA 85
FSA 65, FSA 85, FSA 86, FSA 90
HLA 65, HLA 66, HLA 85, HLA 86
HSA 66, HSA 86, HSA 94, HSA 100, HSA 130, HSA 140, HSA 150
KGA 770
SEA 100
SGA 85
SHA 140
SPA 130, SPA 140, SPA 65

The following tools are compatible with reduced power:
BGA 86, BGA 100, BGA 160
FCA 135, FCA 140
FSA 110, FSA 120, FSA 130, FSA 135
HLA 135
HTA 65, HTA 66, HTA 85, HTA 86, HTA 135, HTA 150, HTA 160
KMA 120, KMA 135
MSA 161 T, MSA 190 T, MSA 220 T
RMA 2, RMA 443, RMA 448, RMA 453, RMA 510

Note: The AP 20 battery is certified to IPX4 protection class.
